Advanced Multi-Technology IPL System

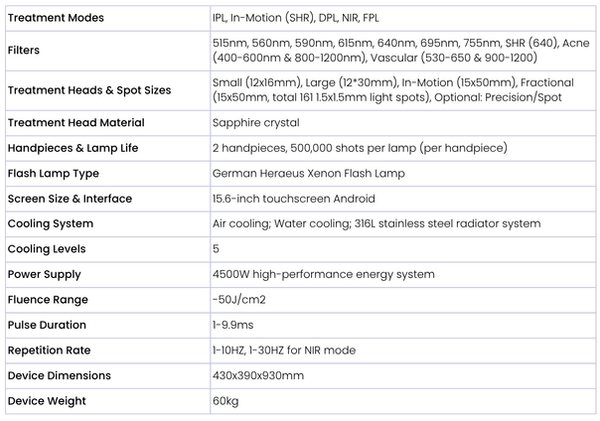

Specifications

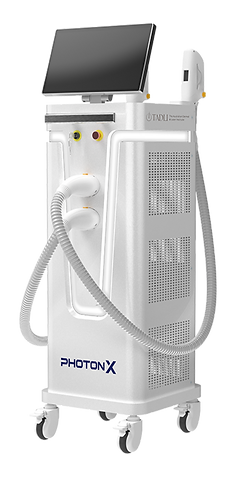

PhotonX
Advanced Multi-Technology IPL System
Five technologies. One device. Hair reduction, skin rejuvenation, pigmentation, vascular acne and non-surgical skin tightening, all from a single ARTG-listed IPL platform.
5 Interchangeable Treatment Heads
The PhotonX is supplied with multiple interchangeable treatment heads to support versatility across clinical applications. Each treatment heads is made from sapphire crystal, a material chosen for its unique thermal properties. Sapphire actively conducts heat away from the epidermis (the skin’s surface) during treatment, protecting the superficial tissue while light energy passes through to reach the intended target below.
Small
12x16mm
Upper lip, chin, jawline, sideburns, brow line.
Large
12x30mm
Face, neck, underarms, bikini, décolletage.
SHR
15x50mm
For in-motion hair reduction, in-built 640nm filter.
Fractional
15x50mm
Inflamed, sensitive or acne-prone skin.
161 micro-spots.
Precision/Spot
*Optional
Targeted treatment of hard-to-reach anatomy and lesions.
German Heraeus Xenon Flash Lamp
Two handpieces are included, each housing a German Heraeus Xenon Flash Lamp rated for 500,000 shots per lamp. Heraeus lamps are engineered for stability and longevity, reducing long-term running costs and maintaining consistent energy output over the lamp’s lifetime.
10 Interchangeable Optical Filters
Filters determine the wavelength of light delivered during treatment. Each filter is matched to a specific skin concern, skin type and treatment depth — giving practitioners precise control over every session.
Standard Cut-Off Filters
Each filter is named for the minimum wavelength it allows through. Lighter skin types generally use lower values; deeper targets and darker skin types use higher values to protect the skin surface.

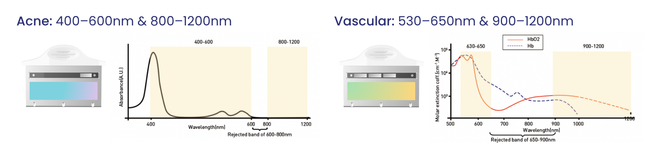

Dual-Band SWT Filters
SWT (Selective Wavelength Technology) filters are designed for precision. They retain only the wavelength bands most relevant to a specific indication, removing wavelengths in between that would otherwise be absorbed by surrounding tissue. The result is more accurate targeting, less energy waste and improved comfort.
Automatic Filter Recognition
The PhotonX will not emit energy without a correctly inserted and recognised filter. This integrated safety control prevents accidental firing with an incorrect or absent filter, protecting both client and practitioner.
Five Technologies, One Platform
Standard IPL pulses a broad spectrum of light at the skin. PhotonX goes further — each of its five integrated technologies delivers energy more selectively, more safely and more comfortably than conventional IPL.
Intense Pulsed Light
The foundation of the platform. IPL delivers controlled pulses of broad-spectrum light into the skin to treat a range of common skin concerns.
-
Hair reduction
-
Pigmentation and sun damage
-
Vascular lesions and redness
-
Skin rejuvenation and collagen stimulation
Suitable for skin types 1–4 with appropriate parameter selection.
Fractional Pulsed Light
FPL delivers energy in targeted micro-zones rather than as a full-field exposure, making it well suited to sensitive or reactive skin types that may not tolerate standard IPL.
-
Acne and acne scarring
-
Rosacea
-
Vascular lesions
-
General skin rejuvenation
-
161 micro-spots per pulse: 1.5mm × 1.5mm lattice pattern
-
Fewer adverse reactions: surrounding tissue left untreated per pulse
DermTyte: Non-surgical skin tightening (755nm NIR)
DermTyte is the PhotonX’s dedicated skin tightening technology. It uses near-infrared energy to stimulate collagen and elastin production deep within the skin, firming and tightening without downtime or surface injury.
-
Skin firming and tightening
-
Collagen and elastin stimulation
-
Fine line improvement
-
Skin re-texturisation
-
No downtime: non-ablative — no surface injury or healing phase
-
Skin types 1–5: safe across a broad range
-
Results from 4 weeks: recommended course of 3–6 sessions
Dynamic Pulsed Light with SWT
DPL uses dual-band filtering to deliver light more precisely than standard IPL, retaining the wavelengths that matter for each indication and removing those that don’t. This improves treatment accuracy, reduces discomfort and extends handpiece lifespan.
-
Vascular lesions, rosacea and redness
-
Epidermal pigmentation
-
Acne and active breakouts
-
Acne filter: 400–600nm & 800–1200nm
-
Vascular filter: 530–650nm & 900–1200nm
In-Motion Technology
PhotonX’s approach to comfortable, high-volume treatments. Rather than a single high-energy pulse, the handpiece moves continuously across the skin, building heat gradually with each pass.
-
Hair reduction across all body areas
-
Skin rejuvenation
-
Safe on skin types 1–5
-
Lower peak energy: reduces discomfort and adverse reaction risk
-
Continuous motion: consistent coverage with no missed areas
Intelligent design. Clinical control.
PhotonX integrates safety controls, workflow tools and client management features into a single platform, designed to support consistent, efficient and well-documented treatments.
-
15.6-inch Android touchscreen
-
Integrated client management system
-
Integrated digital imaging camera
-
Dual-handpiece configuration
-
Triple cooling system with 5 adjustable cooling levels
-

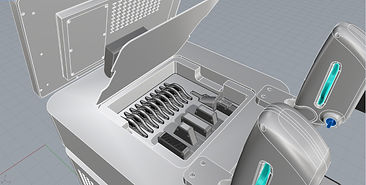

Integrated filter and treatment head storage
Advanced Training
Every PhotonX comes with comprehensive education and ongoing support delivered by TADLI. Because a device is only as effective as the practitioner using it.
12-module online theory programme
-
Self-paced online training delivered by Nancy Abdou, founder of TADLI. Covers the science of how each technology works, not just how to operate the device.
-
Skin anatomy and chromophore science
-
IPL physics and technology
-
Treatment planning and contraindications
-
Skin type assessment (Fitzpatrick scale)
-
Parameter selection across all five technologies
-
Post-treatment care and client communication
2-day hands-on practical training
-
Supervised practical sessions structured so practitioners leave confident and clinic-ready
-
Device familiarisation and parameter selection
-
Consultation and test patch protocols
-
Step-by-step treatment delivery across all indications
-
Safe operation across different skin types
Ongoing support
-
Clinical support and guidance
-
Updated treatment protocols
-
Refresher training opportunities
-
Consultation and consent templates
-
Marketing and launch assets
An IPL platform built for clinical results...
The PhotonX is an advanced multi-technology IPL (Intense Pulsed Light) system that integrates five clinically substantiated light-based technologies into one ARTG-listed device.
IPL works by delivering controlled pulses of light into the skin, where they are absorbed by specific targets called chromophores. By selecting the right technology and wavelength for each concern, treatments can be tailored precisely to each client.
The PhotonX is designed for clinics adding IPL for the first time, and for those upgrading from entry-level or mid-range systems.
Safety: Multiple integrated controls protect clients across all skin types, including automatic filter recognition, real-time temperature monitoring and sapphire contact cooling.
Comfort: In-motion energy delivery builds heat gradually rather than in a single high-energy pulse, significantly reducing discomfort and the risk of adverse reactions.
Results: Five technologies enable a variety of treatment categories from one device, a clinical range that standard IPL systems simply cannot match.
What the PhotonX treats
-
Permanent hair reduction
-
Vascular lesions and rosacea
-
Epidermal pigmentation and sun damage
-
Acne and acne scarring
-
Skin rejuvenation
-
Skin firming and tightening — via DermTyte (755nm NIR)
